Exterior Color:Ceramic Grey Premium Full Body Automotive Paint
-
Interior Color:Black Sands with Walnut
-
Chassis:RAM ProMaster
-
Generator:3,000 Watt Pure Sine Wave Inverter
-
Cargo Capacity:2532 lbs
-
Miles:22
-
Sleeps:3
Description
The Winnebago Roam Opens Up Your Living Space and includes a Rear Gear Area! All Electric Camper Van! The all new Roam 59RZ introduces a fresh and spacious open concept interior to the proven comfort and convenience of this versatile RV, with large rear gear area behind the powered sofa and bed! An all electric camper van with a 3,000 watt pure sine wave inverter to power everything off grid, along an Elwell Timberline gas powered furnace and on demand hot water heater!
Ram Chassis Delivers Power and Safety
The Roam is built on the best-in-class Ram chassis. In addition to ample power, superb handling and fuel efficiency, the package delivers innovative safety features, including rear camera and cross-wind assist.
More Space. More Convenience.
Enjoy the benefits of a true open-concept environment, with more space than traditional camper vans. It’s the perfect choice for those who prefer a more open feel while traveling. And storage solutions and controls are all designed for easy access. Plus an added 21 in gear garage is located just behind the powered sofa bed!
Bathroom: It’s a Big Deal
Say goodbye to the stress of searching for a clean restroom while on the road. The innovative open concept approach continues with a bathroom that's larger than that found in most camper vans, complete with an integrated shower and cassette-style toilet.
Sleeping is a Dream
Relax in comfort with the powered sofa that, with a push of a button, converts into a comfortable bed for a short nap or long night’s sleep. Need more space for the fam? Go with the optional pop-top to comfortably sleep two more and add a Luno Life cab air bed for additional sleeping surface!
Gourmet. To go.
The Roam gives you the space – and appliances – to easily prepare all your favorite food. The intelligently designed galley is appointed with refrigerator, microwave and sink, along multiple outlets for kitchen appliances
This coach is powered by the tried and true fuel efficient RAM ProMaster powertrain, the US version of what has been Europe’s most successful commercial cargo van from Fiat, the Ducato:
1. 3.6L ProMaster V6 gas engine, estimated to achieve 18 to 22 mpg highway
2. 280 horsepower
3. 260 lb ft of torque or power
4. 9 speed automatic TorqueFlight transmission with grade braking
5. Stylized aluminum wheels
6. Three point safety belts with six front air bags, front, side curtain, and side seat bolster
7. Now includes the following new safety and cab enhancements:
a. Electric rack and pinion power steering featuring a 36.3 turning diameter
b. Electronic park brake
c. Forward Collision Warning Plus
d. Digital rearview mirror
e. Multi collision Braking
f. Uconnect Version 5 with 10 inch infotainment with Android Auto, Apple CarPlay and SiriusXM
g. 7 in color digital information cluster
Includes the following factory installed options:
1. The 59RZ sleeps two people... need more sleeping space? Opt for the 59RZP with a pop top overhead studio loft with Froli sleep system
2. Optional Luno Life cab air bed, which brings total sleeping capacity to 5!
Includes the following exterior highlights, in addition to the specifications on our website page and brochure:
1. 24 gallon fuel capacity
2. Elwell Timberline air and hot water heater
3. 30 amp electrical service
4. Coleman Mach 10 NDQ non ducted quiet 13,500 BTU high efficiency air conditioning system
5. Dual group 31 AGM absorbed glass mat maintenance free RV batteries
Missing an Option You're Looking For? We can add any additional options at our dealership, including satellite, solar, Nitrogen for your tires, and more!
At Lichtsinn RV our website has full video walkarounds on each RV, making it easy for you to purchase. On our website you can go for a virtual test drive, purchase your RV over the phone or the internet, and then take delivery at our dealership, which is only 1 Mile from the Winnebago factory here in Forest City, Iowa!

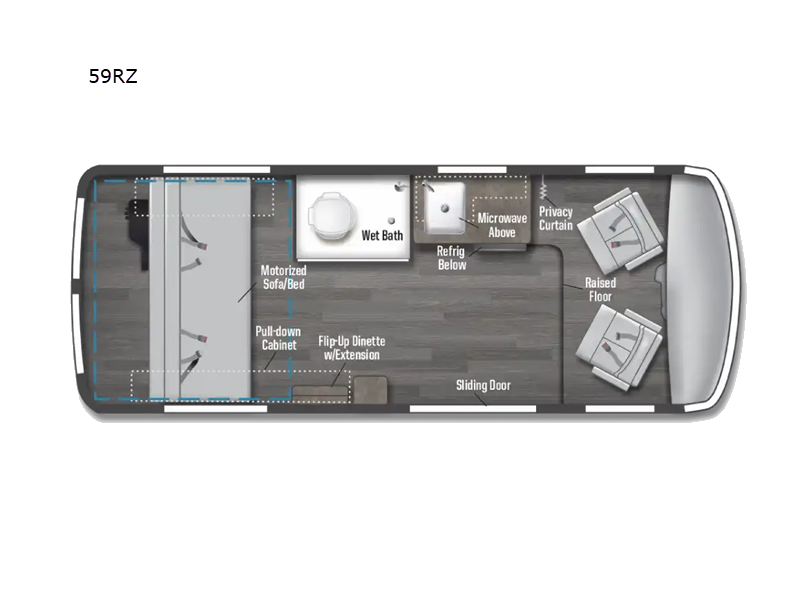

59RZ Floorplan
Specifications
Sleeps | 3 | Length | 21 ft |
Ext Width | 6 ft 9 in | Ext Height | 9 ft |
Int Height | 6 ft 3 in | Interior Color | Black Sands with Walnut |
Exterior Color | Ceramic Grey Premium Full Body Automotive Paint | Hitch Weight | 3500 lbs |
GVWR | 9350 lbs | Cargo Capacity | 2532 lbs |
Fresh Water Capacity | 12 gals | Grey Water Capacity | 13 gals |
Black Water Capacity | 5 gals | Tire Size | 16 |
Generator | 3,000 Watt Pure Sine Wave Inverter | Fuel Type | Gasoline |
Miles | 22 | Engine | RAM ProMaster 3.6L V6 |
Chassis | RAM ProMaster | Horsepower | 280 hp |
Fuel Capacity | 24 gals | Wheelbase | 159 in |
Torque | 260 ft-lb | Refrigerator Type | 12V Single Door Compressor Driven Refrigerator/Freezer |
Refrigerator Size | 3.0 cu ft | Axle Weight Front | 4629 lbs |
Axle Weight Rear | 5291 lbs | Water Heater Type | On Demand |
Gross Combined Weight | 12000 lbs | Shower Type | Wet/Bath Shower |
Electrical Service | 30 amp | VIN | 3C6MRVJG2PE557548 |
ManuFacts
Features
Standard Features (2024)
Chassis
- Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic transmission, 180-amp. alternator
- 4-wheel ABS brakes
- Trailer Hitch6 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
Cab Conveniences
- Radio/Rearview Monitor System 7" multimedia touchscreen infotainment center, steering wheel controls, color rear camera, Apple CarPlay®, Android Auto™, Bluetooth®, SiriusXM® (subscription required), JBL® Speakers and USB ports
- All digital instrument cluster
- Cab seats armrests, adjustable lumbar support, adjustable headrest, and slide/swivel/recline
- Airbags driver and passenger front, side curtain, side seat bolster
- Cruise control
- 3-point seat belts
- Power steering w/telescoping wheel
- Power mirrors w/defrost and turn signal
- Power door locks w/remote
- Power windows
- Digital rearview mirror
- Crosswind assist
- Blind spot monitoring
- 12-volt powerpoints
- Sunvisors
- Front and cab window privacy panels
- Carpet floor mat
- Wireless/keyless entry
- Push button start
Interior
- Wheelchair tiedowns with (4) Q’Straint attachments
- Shoulder belt near wheelchair tiedowns
- LED ceiling lights
- Tinted coach windows
- Systems monitor panel
- Roof vent (pop-top sleeping area)
- USB charging ports
- Heavy duty vinyl flooring throughout
- Ladder (for pop-top)
- (1) Pull-down cabinet for in-reach access
- (4) Additional cabinets along the rear ceiling for storage
- 24” TV
Galley
- Corian countertop
- Pull-out countertop extension
- 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer
- Stainless steel sink
- Microwave
Bath
- Assist bar
- Flexible showerhead
- Swiveling cassette toilet
- Shower curtain
- Shower w/wall surround
- Toilet paper holder
Bedroom
- Sofa/bed w/two 3-point seat belts
- Deluxe powered ventilator fan
- Flip-up dinette table with extending leaf
- Sleep up to 4 with optional pop-top
Exterior
- Braun UVL wheelchair lift (750 lb. weight capacity)
- Porch light w/interior switch (passenger side)
- Assist bar near door
- Aluminum running board w/logoed tread and pet loop attachment
- Cab privacy screen
- Pop-top sleeping area w/FROLI sleep system (optional)
Heating & Cooling System
- Coleman Mach 10 NDQ air conditioner (without pop-top)
- Maxxair fan to increase ventilation
- Elwell Timberline air and water heat
Electrical System
- AC/DC load center
- Auxiliary start circuit
- 2 deep-cycle Group 31 batteries (AGM maintenance-free)
- Coach battery disconnect system
- Automatic dual-battery charge control
- 30-amp. power cord
Plumbing System
- 10' sewer hose
- On-demand water pump
- Heated drainage system
- Water center control panel includes all control valves, connection points and exterior wash station (located inside left rear door)
Safety
- Smoke and carbon monoxide detectors
- Fire extinguisher
- Ground fault interrupter
- Post collision breaking
- Pedestrian detection with forward collision mitigation
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
-
From Canada
Like most: "I can recommend your dealership to anyone, and I would buy from you again for sure if I needed a new Winnebago. Two things were important to me: Being as close to the factory as possible and a fair price....The treatment I received at your dealership was outstanding. The whole experience ... More » -
Strongly Recommend
The staff is very helpful and pleasant! I strongly recommend Lichtsinn!
Kay
Cannon Falls, MN
-
Loyal Customers
What a great team to work with! From Nicole Blaser to Ben, Justin, Brandon, Ron and the rest of the Lichtsinn staff. So friendly and accommodating. This has been our best vehicle buying experience ever. Thank you! We are now loyal customers.
Mykal and Terri
Pleasant Grove, UT
Loading
We work with guests from all over North America - CLICK HERE to see a map of Lichtsinn RV owners across the continent.
Lichtsinn RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags and delivery fees. Manufacturer pictures, specifications and features may be used in place of actual RVs in our inventory. New inventory may be on order. Please contact us at 641-585-3213 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Our financing rates and terms change daily, and the rates and terms utilized in loan payment calculations are the average interest rates and terms written on loans over the past 30 days. Loan calculator examples supply an estimate of 1/3 down cash or trade equity applied to the loan balance in the calculator, which can be customized to each guest. No rate or term is an offer to contract and is illustrative in nature only. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. For your most competitive rate and term, see our business manager for qualification.
Lichtsinn RV has no surprise fees, dealer prep fees, or dealer admin fees. Our predelivery inspection completed by a certified RVTI technician and personalized educational orientation are included at no cost. The only incremental charge to all pricing is a standard, fixed $98 title administration fee.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
