Exterior Color:Copper Canyon
-
Interior Color:Zinc with High Gloss Marbella Cherry Italian Tecnoform Cabinetry
-
Chassis:Mercedes-Benz Sprinter
-
Generator:CumminsOnan Clean Burning 3,600 Watt Microquiet LP
-
Cargo Capacity:1454 lbs
-
Miles:64803
-
Sleeps:4
Description
This is a great 2016 Winnebago View 24J, in which the previous owners were nonsmokers and it comes backed with a clean vehicle history report!
Contact us to schedule your LIVE interactive presentation today to see this RV LIVE in the comfort of your home or office!
This coach is powered by the tried and true Mercedes Benz powertrain:
1. Mercedes Benz 3.0L 6 Cylinder turbo-diesel engine
2. 325 lb ft of torque or power
3. 188 horsepower
4. 5-speed automatic tip-shift transmission with grade braking capability
5. Factory installed tow package, 5,000 lb
6. Radio/Rearview Monitor System
Includes the following factory installed options:
1. Froli Deluxe Sleep System with Individual Adjustable Springs to Contour to your Sleeping Preferences
2. Bedroom TV
3. Stylized Chrome Wheels
4. Heated Drainage System
5. Cab Seat Lounge Cushions
Includes the following exterior highlights, in addition to the specifications on our website page and brochure:
1. 48 cubic feet of exterior and basement storage
2. 26.5 gallon fuel capacity
3. 13 gallon LP capacity
4. 6 gallon LP and electric water heater
5. 30 amp electrical service
6. 15,000 BTU high efficiency air conditioning system
7. 16' powered awning
8. Dual group 24 RV batteries
Missing an Option You're Looking For? We can add any additional options at our dealership, including satellite, solar, Nitrogen for your tires, and more! See common View add-ons HERE.
At Lichtsinn RV our website has full video walkarounds on each RV, making it easy for you to purchase. On our website you can go for a virtual test drive, purchase your RV over the phone or the internet, and then take delivery at our dealership, which is only 1 Mile from the Winnebago Motorhome Factory here in Forest City, Iowa!

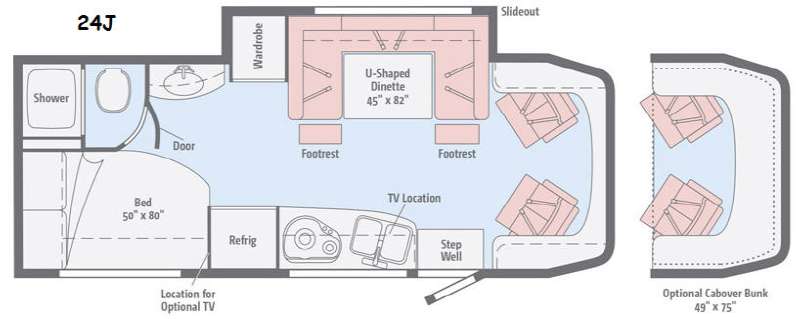

24J Floorplan
Specifications
Sleeps | 4 | Slides | 1 |
Length | 25 ft 5 in | Ext Width | 7 ft 6 in |
Ext Height | 11 ft 2 in | Int Height | 6 ft 8 in |
Interior Color | Zinc with High Gloss Marbella Cherry Italian Tecnoform Cabinetry | Exterior Color | Copper Canyon |
Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
Cargo Capacity | 1454 lbs | Fresh Water Capacity | 38 gals |
Grey Water Capacity | 40 gals | Black Water Capacity | 34 gals |
Tire Size | 16 | Furnace BTU | 20000 btu |
Generator | CumminsOnan Clean Burning 3,600 Watt Microquiet LP | Fuel Type | Diesel |
Miles | 64803 | Engine | Mercedes-Benz 3.0L Turbo Diesel |
Chassis | Mercedes-Benz Sprinter | Horsepower | 188 hp |
Fuel Capacity | 26.4 gals | Wheelbase | 170 in |
Available Beds | 2 | Torque | 325 ft-lb |
Refrigerator Type | Norcold double door | Convection Cooking | Yes |
Cooktop Burners | 2 | Number of Awnings | 1 |
Axle Weight Front | 4410 lbs | Axle Weight Rear | 7720 lbs |
LP Tank Capacity | 13 | Water Heater Capacity | 6 gal |
Water Heater Type | LP and 110 | AC BTU | 15000 btu |
Basement Storage | 48 cu. ft. | TV Info | 28" HDTV, 24" HDTV |
Awning Info | 16' Powered | Gross Combined Weight | 15250 lbs |
Electrical Service | 30 amp | VIN | WDAPF4DC9F9617011 |
ManuFacts
Features
Chassis
- 3.0L 6-cylinder, 188-hp, turbo-diesel engine, 5-speed automatic tip-shift transmission, 220-amp. alternator
- Adaptive ESP® technology
- Hydraulic brakes w/ABS
- Trailer Hitch5 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
- Stainless steel wheel liners (24J, 24V)
- Stylized aluminum wheels (24G)
Options
- Stylized chrome wheels (24J, 24V)
- Stylized aluminum wheels (24J, 24V)
Cab Conveniences
- Radio/Rearview Monitor System 6" touch screen color monitor, handheld remote, iPod®/MP3 input, color rear camera
- Cab seats armrest, adjustable lumbar support, headrest, recline, swivel and slide
- Airbags driver and passenger
- 3-point seat belts
- Power door locks w/remote
- Power windows
- Power mirrors w/defrost and turn signals
- Cruise control
- Chassis/house battery radio power switch
- Power steering w/tilt wheel
- Sunvisors
- 12-volt powerpoints
- Pleated windshield blinds
- Privacy curtain (cab windows)
- Dash appliqué package
Options
- Infotainment Center with Rand McNally RV GPS 6" touch screen color monitor w/split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio w/CD/DVD player, handheld remote, SiriusXM™ (subscription not included), iPod/iPhone® audio integration, Bluetooth™, color rearview camera, USB connection
- 2 cab seat lounge cushions
- Sliding, pleated windshield blinds
- Mobileye® Collision Avoidance System
- JBL premium audio tuned 180-watt DSP amplifier with 5 speakers including subwoofer
Interior
- Stereo System AM/FM, alarm clock, CD/DVD player, input jack, Bluetooth™, 2 speakers and subwoofer
- 28" HDTV
- LED lights
- Satellite system ready
- Monitor panel
- Amplified digital HDTV antenna
- Roof vent w/electric lift and ventilator fan (NA w/available powered skylight)
- Mini blinds (galley)
- Skylight w/shade
- MCD solar/blackout roller shades
- Tinted coach windows
- Soft vinyl ceiling
- Vinyl flooring throughout (24G front to bedroom)
- Assist bar
- Mirror (24V)
- USB charger
- Interior Upgrade Package frosted galley backsplash w/accent lighting, 2 sink covers
- Powered skylight/roof vent w/sliding screen and pleated shade
- Dual-pane acrylic windows
- Sofa sleeper (24G)
Galley
- Laminate countertops
- Microwave/convection oven w/touch control
- 2-burner range top w/glass cover
- Norcold® double-door refrigerator/freezer
- Cold water filtration system
- Water-pump switch w/light
Bath
- Retractable, self-cleaning shower screen
- Flexible showerhead
- Skylight
- Porcelain toilet w/foot pedal and sprayer (24J, 24V)
- Porcelain toilet w/electric flush (24G)
- Powered roof vent
- Towel ring(s)
- Towel bar(s)
- Tissue holder
- Robe hook(s) (24J)
- Medicine cabinet (24G)
- Powered ventilator fan
Bedroom
- Corner bed w/headboard, foam mattress, mattress cover, and access to storage below (24J)
- Memory foam mattress w/cover (24G)
- Flex Bed System twin beds/queen bed w/foam mattresses and access to storage below (24V)
- MCD blackout roller shades
Options
- 24" HDTV
- Froli deluxe sleep system (NA 24G)
Exterior
- Automatic entrance door step(s)
- LED porch light w/interior switch
- Stepwell light w/interior switch
- Front and rear mud flaps
- Premium high-gloss skin
- Powered patio awning w/LED lights (full-body paint option includes metal wrap)
- Lighted storage compartments
- Exterior speakers
- Bike rack
Heating & Cooling System
- 15,000 BTU roof-mounted air conditioner
- 20,000 BTU furnace
- 15,000 BTU roof-mounted air conditioner w/heat pump
- Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
- Auxiliary start circuit
- Exterior AC duplex
- Exterior antenna jack
- Battery disconnect system (coach)
- Automatic dual-battery charge control
- AC/DC load center, 45-amp. converter/charger
- 2 deep-cycle, Group 24 RV batteries
- 3,600-watt Cummins Onan MicroQuiet™ LP generator
- 1,000-watt DC/AC inverter
- 3,200-watt Cummins Onan® diesel generator
- Solar panel/battery charger (24J, 24V)
- Service Center color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
- 10' sewer hose
- TrueLevel™ holding tank monitoring system
- 6-gallon 110-volt/LP water heater w/Energy Management System
- Permanent-mount LP Tank w/remote fill w/power switches
- Winterization Package water heater bypass valve and siphon tube
- On-demand water pump
- Lockable water tank fill
- Sewage pump macerator (24V)
- Holding tank flushing system
Options
- Heated drainage system
- Tankless water heater (24J, 24V)
- LP, smoke and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
- Child seat tether anchor (24J)
- High-mount brake lamps
- Daytime running lamps
Save your favorite RVs as you browse. Begin with this one!
-
From Canada
Like most: "I can recommend your dealership to anyone, and I would buy from you again for sure if I needed a new Winnebago. Two things were important to me: Being as close to the factory as possible and a fair price....The treatment I received at your dealership was outstanding. The whole experience ... More » -
Wonderful Buying Process
Thanks for your support and a wonderful buying process for the RV. Your knowledge, educational videos, and willingness to support the buyer were appreciated.
Douglas
Eagan, MN -
Love the RV Lifestyle
After buying our first Winnebago from Lichtsinn RV 14 1/2 years ago, and putting 114,000 miles on it, when the time came to buy our next motorhome we knew we would return to Iowa even though we live in California. In addition to the quality of the RV, it really is all about the people. From being picked ... More »
Loading
We work with guests from all over North America - CLICK HERE to see a map of Lichtsinn RV owners across the continent.
Lichtsinn RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags and delivery fees. Manufacturer pictures, specifications and features may be used in place of actual RVs in our inventory. New inventory may be on order. Please contact us at 641-585-3213 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Our financing rates and terms change daily, and the rates and terms utilized in loan payment calculations are the average interest rates and terms written on loans over the past 30 days. Loan calculator examples supply an estimate of 1/3 down cash or trade equity applied to the loan balance in the calculator, which can be customized to each guest. No rate or term is an offer to contract and is illustrative in nature only. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. For your most competitive rate and term, see our business manager for qualification.
Lichtsinn RV has no surprise fees, dealer prep fees, or dealer admin fees. Our predelivery inspection completed by a certified RVTI technician and personalized educational orientation are included at no cost. The only incremental charge to all pricing is a standard, fixed $98 title administration fee.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
